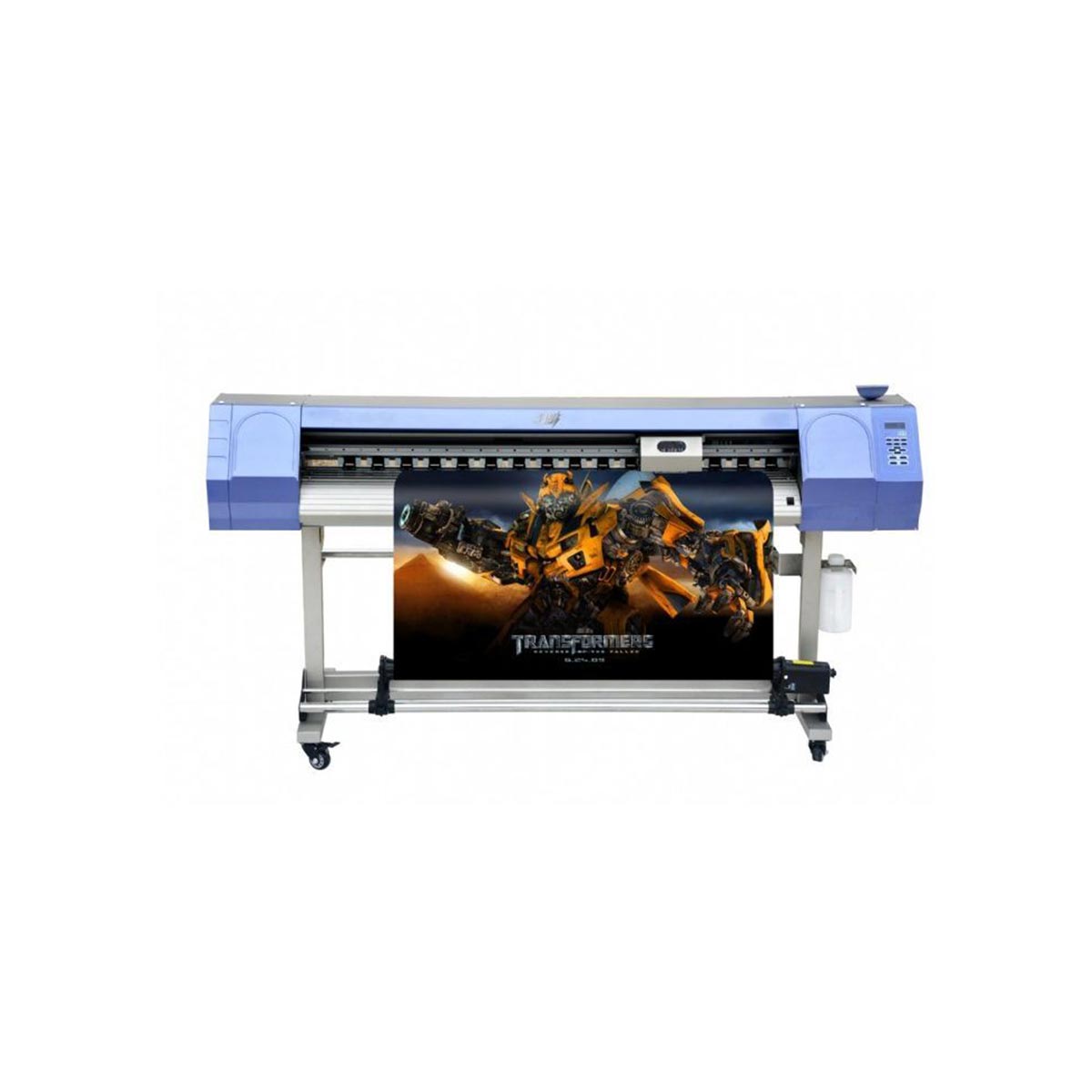

Plotter da Stampa Eco Solvente - 162cm con testina Epson DX-5
Micro Piezo Large Format Inkjet Printer;
Intelligent machine, no need of high configuration of computer;
Easy operation and maintenance, saving time and labor;
Unparalleled high-speed and high-resolution;
High quality output image with Epson DX-5 printhead;
Uncatchable speed and resolution, truely high speed and high resolution inkjet printer;
Functions and Features
1.Four colorFour-color printing, 1.62m wide format output;
2.Different kinds of ink can be choosed, made the picture more gorgeous and lifelike;
3.Printing resolution can reach to 1440dpi, even the word is small as 0.5mm;
4.Three different sizes of dots, achieving the complement of point technology, eliminating
the granular sensation of the images, even under high speed or low resolution, high quality
images can be printed.
5.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding
media.
6.Auto feeding and take-up system, heating system and fans drying system make the image can
be output continuously with noneperson. The fans make the image dry faster with the heating
system, and it guarantee the feeding and take-up system working well.
Technical Parameters and Specifications:
Printhead
Micro Piezo technology(180 nozzles x 8 lines)*1 head
Print Width
1620mm(63.8”)
Resolution
540, 720, 1440dpi
Print Mode
540x720dpi, 720x720dpi, 720x1440dpi, 1440x1440dpi
Ink Type
Eco Solvent ink-ES3
Media
Flex Banner, Adhesive Vinyl, PVC, Mesh, One Way Vision, Eco Solvent Inkjet Paper, etc.
Heating System
Front, middle, back three sections
Media Take-up device
Equipped
Operation Environments
Temperature: 20?-35?(68?-95?)
Humidity: 35%-65%Rh
Application Standards
VCCI Class A, FCC Class A, UL 60950, CE Marking, CB report
Interface
USB2.0
Power Supply
AC100V-120V±10%, AC220V-240V±10%, 50/60±1Hz
Electricity Consumption
Below 1440VA
Inkjet Meida
Width: 1650mm(64.9”)
Weight: below 25kg(55.1lbs)
Media Surface: Face out
Inner Diameter: 50.8mm(2in.) or 76.2mm(3in.)
Certificate
UL, FCC, CSA, TUV, CE Mark, ISO9001:2000
Machine Weight
160kg(353lbs)
Machine Size
L*W*H: 2.54*0.74*1.42m(99.9”*29.1”*56.1”)
